Celanese CE66FC POM Polyoxymethylene Extrusion Grade Polyoxymethylene Material

Ask Lasest Price
Brand Name :	Celanese
Model Number :	POM CE66FC
Certification :	Ocean freight appraisal report
Price :	USD1.5-2
Payment Terms :	T/T
Supply Ability :	500Tons
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

Celanese CE66FC POM Polyoxymethylene Extrusion Grade Polyoxymethylene Material

Products Description

Celanese CE66FC POM Polyoxymethylene Extrusion Grade Polyoxymethylene Material

OM Celanese CE66FC High toughness extrusion-grade injection molding applications Good processability blow molding grade

product feature

(1) Automobile industry
POM is widely used in the manufacture of fuel system components, door lock systems, seat belt parts, hydraulic metal flanges and other components, and is favored for its wear resistance and chemical resistance
.
(2) Mechanical manufacturing
POM is used to manufacture gears, bearings, springs, cams, conveyor belts and other mechanical components, and is widely used for its high mechanical strength and wear resistance.
(3) Electronic appliances
POM is used in the manufacture of electrical components such as power plugs, switch sockets, and is chosen for its electrical insulation and chemical resistance
.
(4) Food industry
POM is used in food processing equipment and packaging materials because of its food contact safety and good chemical stability
.
(5) Medical field
POM is used in the manufacture of surgical instruments, medical devices and diagnostic instruments and is favored for its stringent production standards and long-term supply stability
.
(6) Architecture and sports
POM is used to make construction components such as faucets and window frames, as well as paint materials for ski shoes, and is adopted for its wear resistance and aesthetics
.
(7) Other fields
POM is also used in the military sector (such as mortar guns), consumer goods (such as toys), and emerging sectors (such as sports equipment).

POM

CE66FC

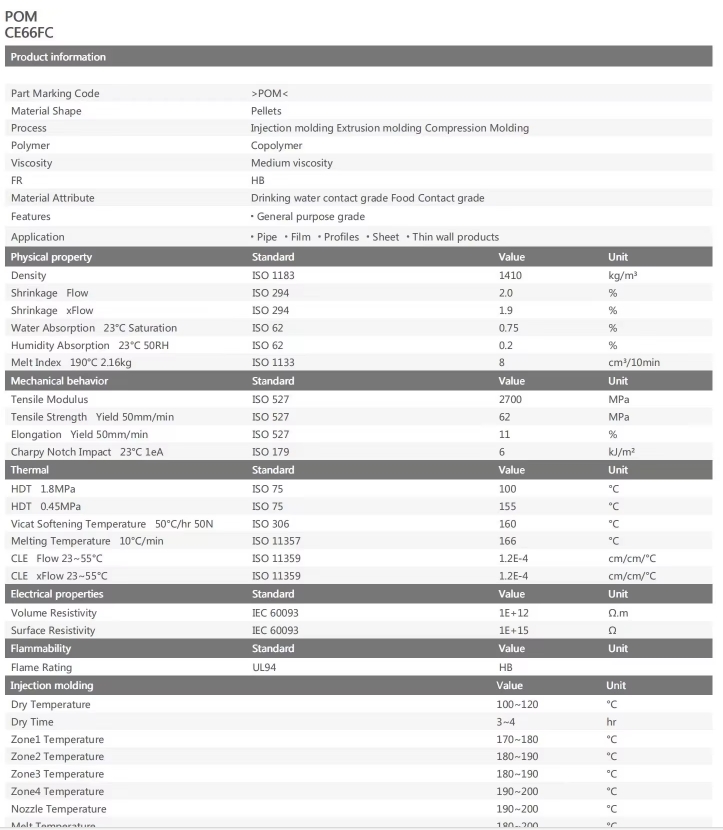

Product information

Part Marking Code	>POM<
Material Shape	Pellets
Process	Injection molding Extrusion molding Compression Molding
Polymer	Copolymer
Viscosity	Medium viscosity
FR	HB
Material Attribute	Drinking water contact grade Food Contact grade
Features	·General purpose grade
Application	Pipe ·Film ·Profiles ·Sheet ·Thin wall products
Physical property	Standard Value	Unit
Density	SO 1183 1410	kg/m³
Shrinkage Flow	ISO 294 2.0	%
Shrinkage xFlow	SO 294 1.9	%
Water Absorption 23℃ Saturation	SO62 0.75	%
Humidity Absorption 23℃ 50RH	SO62 0.2	%
Melt Index 190℃216kg	SO 1133 8	cm³/10min
Mechanical behavior	Standard Value	Unit
Tensile Modulus	ISO 527 2700	MPa
Tensile Strength Yield 50mm/min	SO 527 62	MPa
Elongation Yield 50mm/min	SO 527 11	%
Charpy Notch Impact 23℃ leA	SO 179 6	kJ/m²
Thermal	Standard Value	Unit
HDT 1.8MPa	SO 75 100	℃
HDT 0.45MPa	SO75 155	℃
Vicat Softening Temperature 50℃/hr 50N	ISO 306 160	℃
Melting Temperature 10°C/min	SO 11357 166	℃
CLE Flow 23~55℃	ISO 11359 1.2E-4	cm/cm/℃
CLE xFlow 23~55℃	SO 11359 1.2E-4	cm/cm/℃
Electrical properties	Standard Value	Unit
Volume Resistivity	EC 60093 1E+12	Qm
Surface Resistivity	EC 60093 1E+15	Ω
Fammability	Standard Value	Unit
Flame Rating	UL94 HB
Injection molding	Value	Unit
Dry Temperature	100~120	℃
Dry Time	3~4	hr
Zonel Temperature	170~180	℃
Zone2 Temperature	180~190	℃
Zone3 Temperature	180~190	℃
Zone4 Temperature Nozzle Temperature al+Tnmnrafun	190~200 190~200 190-.200	℃ ℃

Application

Celanese CE66FC POM Polyoxymethylene Extrusion Grade Polyoxymethylene Material

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

Physical Property Parameter
