Japan Baoli M90 Polyoxymethylene Resin Heat Stable Medium Viscosity

Ask Lasest Price
Brand Name :	Baoli
Model Number :	POM M90
Certification :	Ocean freight appraisal report
Price :	US1.5-2KG
Payment Terms :	T/T
Supply Ability :	500T
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

Japan Baoli M90 Polyoxymethylene Resin Heat Stable Medium Viscosity

Products Description

Japan Baoli M90 Polyoxymethylene Resin Heat Stable Medium Viscosity

POM Japan Baoli M90 high flow resistance heat stable medium viscosity polyformaldehyde injection grade

product feature

Good wear resistance: Parts made with POM POM M90 can maintain stable performance for a long time in the case of high-frequency and high-speed friction and wear.
Excellent high temperature resistance: the product can still maintain high strength and stability under high temperature environment, without loosening, melting and other conditions.
High strength: Compared to conventional POM materials, Japan Poly M90 has higher strength and better resilience.
Good transparency: Most of the POM raw materials on the market are not transparent, but POM Japan Baoli M90 can show a high degree of transparency.

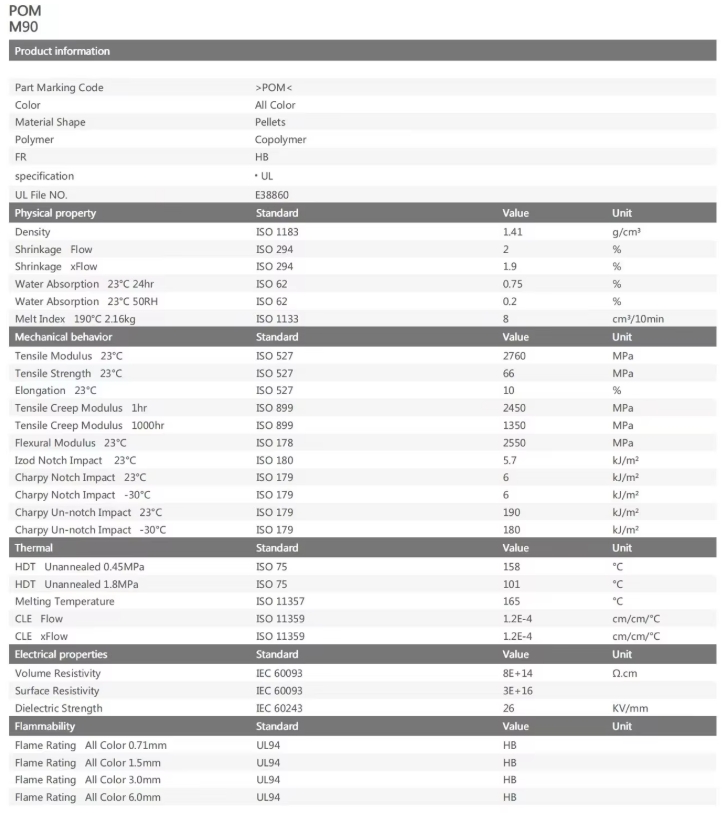

POM M90

Product information

Part Marking Code >POM<
Color All Color
Material Shape Pellets
Polymer FR	Copolymer HB
specification ·UL
UL File NO. E38860
Physical property Standard Value Unit
Density SO 1183 1.41 g/cm³
Shrinkage Flow ISO 294 2 %
Shrinkage xFlow ISO 294 1.9 %
Water Absorption 23℃24hr ISO62 0.75 %
Water Absorption 23℃ 50RH SO 62 0.2 %
Melt Index 190℃ 2.16kg Mechanical behavior		SO 1133 Standard			8 Value	cm³/10min Unit
Tensile Modulus 23℃ ISO 527 2760 MPa
Tensile Strength 23℃ SO 527 66 MPa
Elongation 23℃ ISO 527 10 %
Tensile Creep Modulus lhr ISO 899 2450 MPa
Tensile Creep Modulus 1000hr ISO 899 1350 MPa
Flexural Modulus 23℃ SO 178 2550 MPa
Izod Notch Impact 23℃ ISO 180 5.7 kJ/m²
Charpy Notch Impact 23℃ SO 179 6 kJ/m²
Charpy Notch Impact -30℃ SO 179 6 kJ/m²
Charpy Un-notch Impact 23℃ ISO 179 190 kJ/m²
Charpy Un-notch Impact -30℃ SO 179 180 kJ/m²
Thermal Standard Value Unit
HDT Unannealed 0.45MPa ISO 75 158 ℃
HDT Unannealed 1.8MPa SO 75 101 ℃
Melting Temperature ISO 11357 165 ℃
CLE Flow SO 11359 1.2E-4 cm/cm/℃
CLE xFlow SO 11359 1.2E-4 cm/cm/℃
Electrical properties Standard Value Unit
Volume Resistivity IEC60093 8E+14 Q.cm
Surface Resistivity EC 60093 3E+16
Dielectric Strength Fammability			EC60243 Standard		26 Value	KV/mm Unit
Flame Rating All Color 0.71mm UL94 HB
Flame Rating Al Color 1.5mm Flame Rating All Color 3.0mm Flame Rating Al Color 6.0mm		UL94 UL94 UL94		HB HB HB

Application

Japan Baoli M90 Polyoxymethylene Resin Heat Stable Medium Viscosity

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

Physical Property Parameter

Company Profile:

Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.

Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.

We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.

our Product Range Includes Engineering Materials And General Mater

Warehouse:

FAQ

How about our package?

1.All the packing can be customized.

2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.

3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to

handle the dosage.

What are our business principles?

1.For the trial order, 1tons will be acceptable.

2.We will do our best for the customer as long as you choosing us.

3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.

What are the advantages of our shipping and delivery?

1.We make sure all the products will be inspected strictly before loading.

2.We will make the shipment within 7 days after confirm the payment.

3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client

Application	Electronics electrical appliances mobile phones cars
Grade	Injection Grade,Extrusion Grade
OEM/ODM	Accepted
