    Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30

    Ask Lasest Price
    Brand Name : Otsuka Chemical
    Model Number : PA9T NT36
    Price : USU 5-5.5KG
    Payment Terms : T/T
    Supply Ability : 500TONS
    Delivery Time : 7-15days
    Certification : Ocean freight appraisal report
    • Product Details
    • Company Profile

    Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30


    Products Description



    Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30


    PA9T Otsuka Chemical NT36 wear-resistant chemical resistance High strength high toughness Electronic and electrical components applications Precision mechanical applications

    PA9T NT36 is suitable for many fields, including automotive, electronic appliances, precision machinery, etc. In the automotive field, it is often used in engine parts, cooling system components, etc., because of its high temperature resistance and chemical stability, it has become an ideal material for automotive lightweight design and improve fuel efficiency ‌. In the electronic and electrical field, PA9T NT36 is suitable for electronic connectors, wire insulation, circuit board support and other components for surface adhesion technology (SMT), which helps to improve the reliability and stability of electronic equipment ‌. In addition, PA9T NT36 can also be used in medical equipment, precision machinery and sporting goods ‌.

    product feature

    NT36

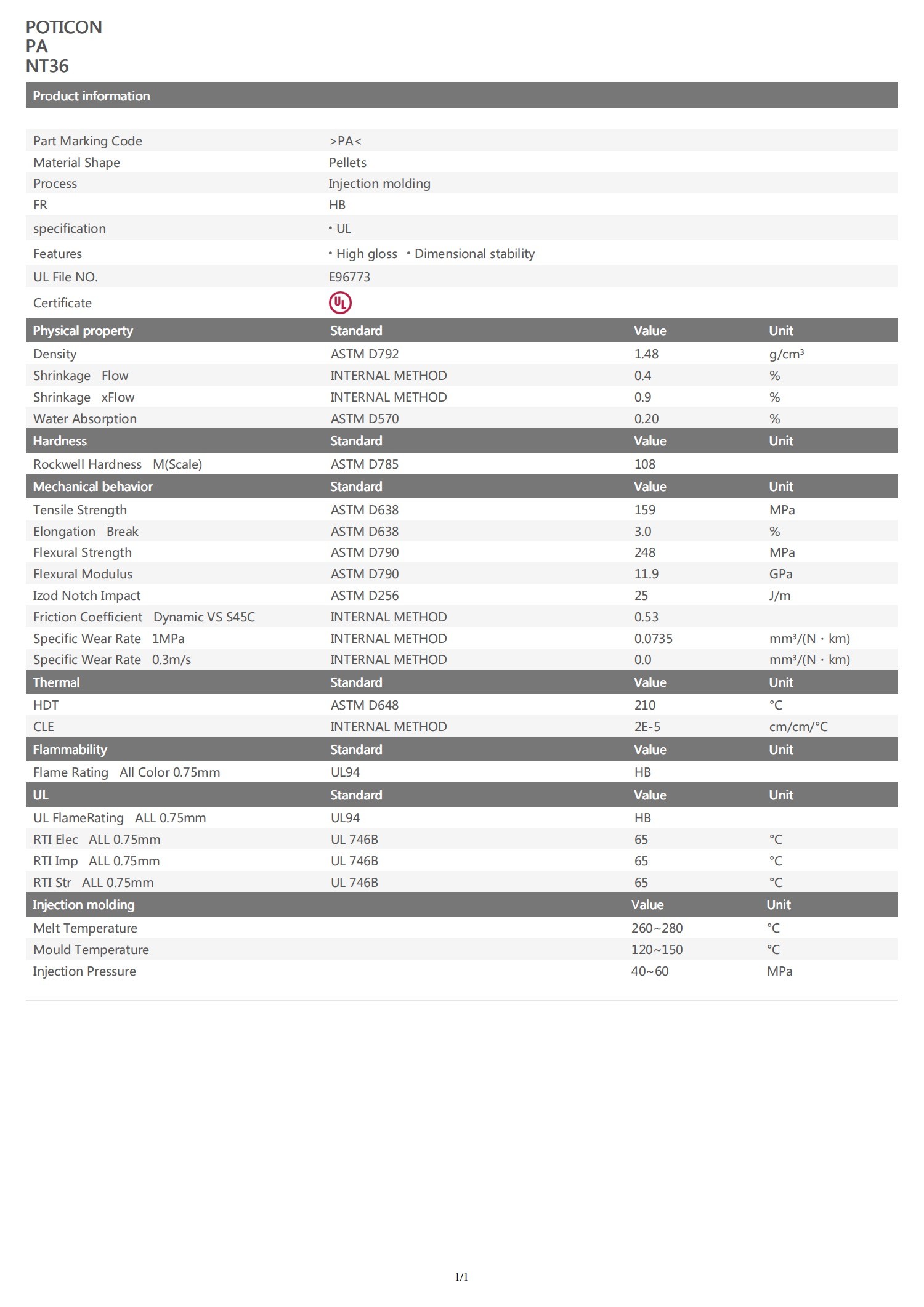

    Product information

    Part Marking Code>PA<
    Material ShapePellets
    Process FRInjection molding HB
    specification·UL
    Features·High gloss ·Dimensional stability
    UL File NOE96773
    CertificateUL
    Physical propertyStandardValueUnit
    DensityASTM D7921.48g/cm²
    Shrinkage FowNTERNAL METHOD0.4%
    Shrinkage xHowNTERNAL METHOD0.9%
    Water AbsorptionASTM D5700.20%
    HardnessStandardValueUnit
    Rockwell Hardness M(Scale)ASTM D785108
    Mechanical behaviorStandardValueUnit
    Tensile StrengthASTM D638159MPa
    Elongation BreakASTM D6383.0%
    Hexural StrengthASTM D790248MPa
    Fexural ModulusASTM D79011.9GPa
    Lzod Notch ImpactASTM D25625J/m
    Friction Coefficient Dynamic VS S45CNTERNAL METHOD0.53
    Specific Wear Rate 1MPaNTERNAL METHOD0.0735mm/(N ·km)
    Specific Wear Rate 0.3m/sNTERNAL METHOD0.0mm³/(N ·km
    ThermslStandardValueUnt
    HDTASTM D648210
    CLENTERNAL METHOD2E-5cm/cm/C
    FammablityStandardValueUnit
    Flame Rating All Color 0.75mmUL94HB
    ULStandardValueUnit
    UL FlameRating ALL 0.75mmUL94HB
    RTI Elec ALL0.75mmUL746B65
    RTI Imp ALL0.75mmUL746B65
    RTI Str ALL0.75mmUL746B65
    Injection moldingValueUnt
    Melt Temperature260-280
    Mould Temperature120-150
    Injection Pressure40~60MPa

    Application


    Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30

    Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30

    Optical lighting


    It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

    Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30Electronic appliances

    It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

    Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30Mechanical equipment

    It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields


    Physical Property Parameter​

    Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30



    Company Profile:


    Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

    The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
    Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
    We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
    our Product Range Includes Engineering Materials And General Mater
    Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30

    Warehouse:


    Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30
    Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30
    FAQ
    How about our package?
    1.All the packing can be customized.
    2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
    3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
    handle the dosage.
    What are our business principles?
    1.For the trial order, 1tons will be acceptable.
    2.We will do our best for the customer as long as you choosing us.
    3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.
    What are the advantages of our shipping and delivery?
    1.We make sure all the products will be inspected strictly before loading.
    2.We will make the shipment within 7 days after confirm the payment.
    3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client

    ApplicationElectronics electrical appliances mobile phones cars
    GradeInjection Grade,Extrusion Grade
    OEM/ODMAccepted
