Products Description
|
PES Basic Innovation (USA) JF1006 Weather resistant Creep resistant
flexible transparent polyether sulfone |
product feature
PES granule
Thermoplastic polymer material is one of the few special
engineering plastics that have been applied. It has excellent heat
resistance, physical and mechanical properties, insulation
properties, etc., especially with the outstanding advantages of
continuous use at high temperatures and the ability to maintain
stable performance in the environment of rapid temperature changes,
and has been widely used in many fields. |

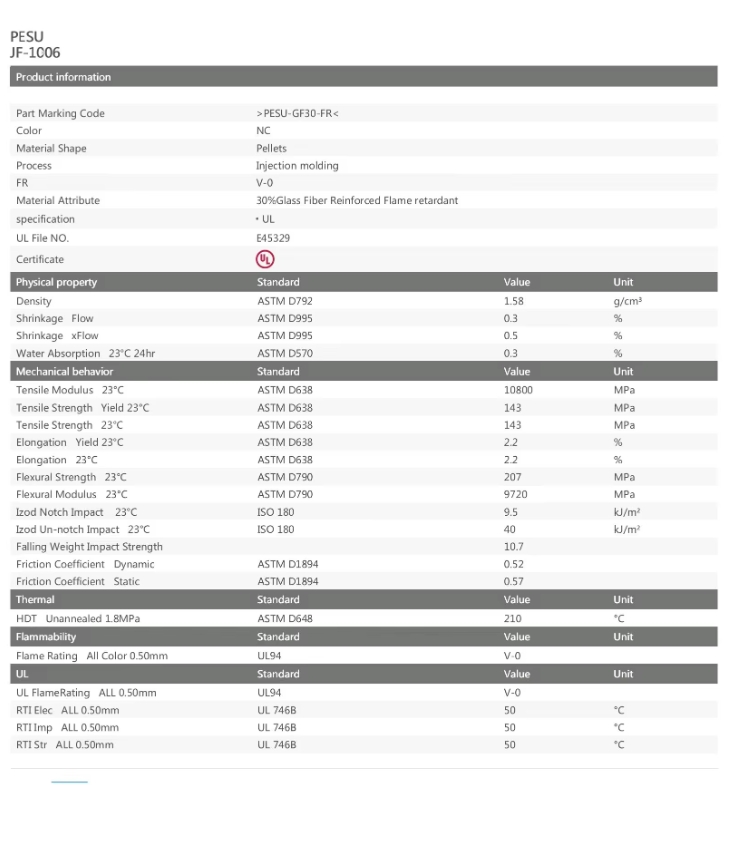

PES
| JF-1C06 |
| Product information |
|
| Part Marking Code | >PESU-GF30-FR< |
| Color | NC |
| Material Shape | Pellets |
| Process | njection molding |
FR Material Attribute | V-0 30%Glass Fiber Reinforced Flame retardant |
| specification | ·UL |
| UL File NO. | E45329 |
| Certificate |
| Physical property | Standard | Value | Unit |
| Density | ASTM D792 | 1.58 | g/cm³ |
| Shrinkage Flow | ASTM D995 | 0.3 | % |
| Shrinkage xFlow | ASTM D995 | 0.5 | % |
| Water Absorption 23℃24hr | ASTM DS70 | 0.3 | % |
| Mechanical behavior | Standard | Value | Unit |
| Tensile Modulus 23℃ | ASTM D638 | 10800 | MPa |
| Tensile Strength Yield 23℃ | ASTM D638 | 143 | MPa |
| Tensile Strength 23℃ | ASTM D638 | 143 | MPa |
| Elongation Yield 23℃ | ASTM D638 | 2.2 | % |
| Elongation 23℃ | ASTM D638 | 2.2 | % |
| Flexural Strength 23℃ Flexural Modulus 23℃ | ASTMD790 ASTM D790 | 207 9720 | MPa MPa |
| Izod Notch Impact 23℃ | ISO 180 | 9.5 | kJ/m² |
| Izod Un-notch Impact 23℃ | ISO 180 | 40 | kJ/m² |
| Falling Weight Impact Strength | | 10.7 | |
| Friction Coefficient Dynamic | ASTM D1894 | 0.52 | |
| Friction Coefficient Static | ASTM D1894 | 0.57 | |
| Thermal | Standard | Value | Unit |
| HDT Unannealed 18MPa | ASTM D648 | 210 | ℃ |
| Flammability | Standard | Value | Unit |
| Flame Rating All Color 0.50mm | UL94 | V-0 | |
| UL | Standard | Value | Unit |
| UL FlameRating ALL 0.50mm | UL94 | V-0 | |
| RTI Elec ALL0.50mm | UL746B | 50 | ℃ |
RTIImp ALL0.50mm RTIStr ALL0.50mm | UL746B UL746B | 50 50 | ℃ ℃ | |
Application
 Optical lighting
It used to manufacture large lampshade, protective glass, left and
right eyepiece tubes of Optical instrument, etc., and can also be
widely used as transparent materials on aircraft. |  Electronic appliances
It used in the manufacturing of insulation connectors, coil frames,
sockets, insulation sleeves, telephone shells and parts, and
battery shells for mining lamps, and so on. |  Mechanical equipment
It used for manufacturing various gears, racks, worm gears, worms,
bearings, cams, bolts, levers, crankshafts, ratchets, and can also
be used as mechanical components such as shields |
