    Thermal Stability PA9T Material Flame Retardant Electronic PA9T Plastic

    Ask Lasest Price
    Brand Name : Japan Corri
    Model Number : PA9T GN2330
    Price : USD 8-9KG
    Payment Terms : T/T
    Supply Ability : 500TONS
    Delivery Time : 7-15days
    Certification : Ocean freight appraisal report
    • Product Details
    • Company Profile

    Thermal Stability PA9T Material Flame Retardant Electronic PA9T Plastic


    Products Description



    Thermal Stability PA9T Material Flame Retardant Electronic PA9T Plastic


    PA9T Japan Corri GN2330 Flame Retardant Grade Enhanced High Temperature Thermal Stability Chemical Resistance Electrical And Electronic Applications Industrial Machinery Applications
    PA9T GN2330 has excellent toughness, can withstand large external forces without breaking ‌. The material can withstand temperatures up to 275°C and is suitable for applications where high temperature stability is required ‌. Small size change at high temperature environment, excellent creep resistance ‌. It has good chemical resistance and can maintain stability in a variety of chemical environments ‌. The PA9T GN2330 performs well in applications requiring high strength, high temperature resistance and high toughness, and is suitable for a variety of industrial and electronic equipment manufacturing fields.

    product feature


    Genestar
    PA9T
    GN2330
    Product information
    Part Marking Code>PA9T-GF33-FR(17)<
    ColorNC
    Material ShapePellets
    Processnjection molding
    FRV-0
    Material Attnbute33%Glass Fiber Reinforced Halogen
    specification·RoHS ·UL
    Features·Dimensional stability ·Low water absorption ·High toughness ·High strength
    ·High stiffness ·Creep resistance-Heat Aging resistant ·High heat resistance
    ·Chemical Resstant ·Good moldability
    Application·E&E Applications ·Connector ·Compacting equipment ·Wire&Cable ·Computer parts
    ·RAM socket ·USB parts
    AdditivesHalogen Fame Retardant Agent Lubncant Mold Releases
    UL File NOE90350
    CertificateUL ROHS
    Physical property Standard Value Unit
    DensityNTERNAL METHOD162g/cm¹
    Shrinkage Flow 2.0mmSO 2940.2%
    Shrinkage xFow 2.0mmSO 2940.8%
    Water Absorption 23℃24hr In WaterSO620.13%
    Water Absorption 40C 95RH 96hrSO6210%
    Melt Index 320C2.16kgSO 113321g/10min
    Spiral Flow 320C75MPa 050mmNTERNAL METHOD55mm
    Mechanical behaworStandardValueUnit
    Tensile StrengthIsO 527184MPa
    Tensile Strength WeldSO 52756MPa
    ElongationSO 52718%
    Elongation WeldSO 52710%
    Hlexural StrengthSO178260MPa
    Hlexural ModulusSO 17811.5GPa
    Charpy Notch ImpactSO 17911.2kJ/m
    FlammablityStandardValueUnit
    Fame Rating All Color0.75mmUL94V-0
    Hame Rating All Color 1.5mmUL94V-0
    Hame Rating Al Color 3.0mmUL94V-0

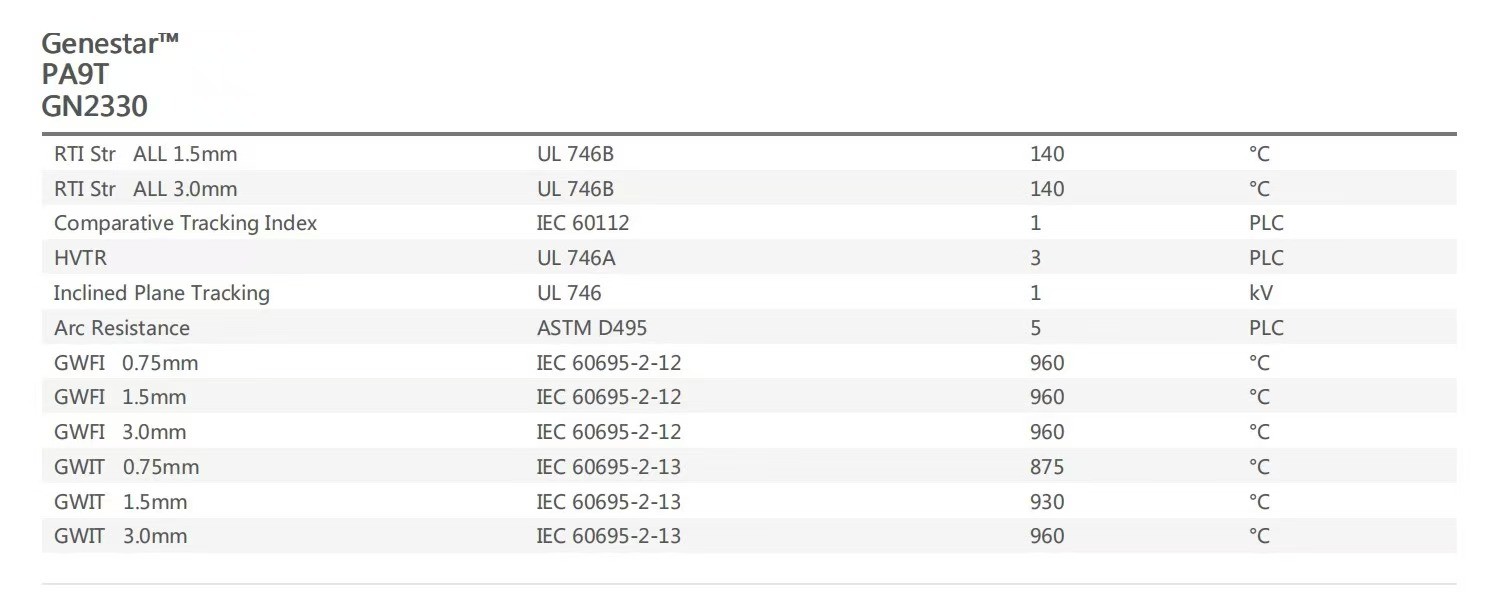

    ULStandardValueUnit
    UL FlameRating ALL0.75mmUL94V-0
    UL FlameRating ALL 15mmUL94V-0
    UL FlameRating ALL 3.0mmUL94V-0
    HWI ALL0.75mmUL746A0PLC
    HWI ALL 1.5mmUL746A0PLC
    HWI ALL 30mmUL746A0PLC
    HAI ALL0.75mmUL746A0PLC
    HAI ALL 1.5mmUL746A0PLC
    HAI ALL 3.0mmUL746A0PLC
    RTI Elec ALL 0.75mmUL746B150
    RTI Elec ALL1.5mmUL746B150
    RTI Elec ALL 3.0mmUL746B150
    RTI Imp ALL 0.75mmUL746B120
    RTI Imp ALL 1.5mmUL746B130
    RTI Imp ALL 3.0mmUL7468130

    Application


    Thermal Stability PA9T Material Flame Retardant Electronic PA9T PlasticThermal Stability PA9T Material Flame Retardant Electronic PA9T Plastic

    Thermal Stability PA9T Material Flame Retardant Electronic PA9T Plastic

    Optical lighting


    It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

    Thermal Stability PA9T Material Flame Retardant Electronic PA9T PlasticElectronic appliances

    It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

    Thermal Stability PA9T Material Flame Retardant Electronic PA9T PlasticMechanical equipment

    It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields


    Physical Property Parameter​

    Thermal Stability PA9T Material Flame Retardant Electronic PA9T Plastic


    Thermal Stability PA9T Material Flame Retardant Electronic PA9T Plastic

    Thermal Stability PA9T Material Flame Retardant Electronic PA9T Plastic
