Products Description
|
PES Germany BASF E2010 High heat resistance high flow size stable
high temperature resistance |
product feature
PES granule
Thermoplastic polymer material is one of the few special
engineering plastics that have been applied. It has excellent heat
resistance, physical and mechanical properties, insulation
properties, etc., especially with the outstanding advantages of
continuous use at high temperatures and the ability to maintain
stable performance in the environment of rapid temperature changes,
and has been widely used in many fields. |
| Product information |
PES E2010 |
| Part Marking Code >PES< |
| Color NC |
| Material Shape Pellets |
| Process njection molding Extrusion molding |
| FR V-2V-0 |
| Physical property Standard Value Unit |
| Density ASTM D792 137 g/cm |
| Shrinkage How ASTM D955 0.6 % |
| Shrinkage xAow ASTM D955 0.6 % |
Water Absorption Hardness | ASTM D570 Standard | 0.7 Value | % Unt |
Rockwell Hardness M(Scale) INTERNAL METHOD 85 Mechanical behawior Standard Value Unit |
| Tensile Modulus ASTM D638 2452 MPa |
| Tensile Strength ASTM D638 88 MPa |
| Elongation Break ASTM D638 40-80 % |
| Fexural Strength ASTM D790 135 MPa |
Hexural Modulus Lzod Notch Impact | ASTM D790 ASTM D256 | 2550 90 | MPa J/m |
| Optical performance Standard Value Unit |
| Transmittance ASTM D1003 88 % |
Refractive Index NTERNAL METHOD 165 Thermd Standard Value Unit |
| HDT ASTM D648 207 ℃ |
| Glass Transition Temperature NTERNAL METHOD 225 C |
| CLE Flow ASTM D696 5.6E-5 cm/em/C |
| CLE xFlow ASTM D696 5.6E-5 cm/cm/"C |
| Eectncal properties Standard Value Unit |
Volume Resistivity Fammsbility | ASTM D257 Standard | 1E+16 Value | Ωcm Unit |
| Fame Rating 1.5mm UL94 V-0 |
Fame Rating 04mm UL94 V-2 Limiting Oxygen Index 1.60mm ASTM D2863 38 % |
Application
 Optical lighting
It used to manufacture large lampshade, protective glass, left and
right eyepiece tubes of Optical instrument, etc., and can also be
widely used as transparent materials on aircraft. |  Electronic appliances
It used in the manufacturing of insulation connectors, coil frames,
sockets, insulation sleeves, telephone shells and parts, and
battery shells for mining lamps, and so on. |  Mechanical equipment
It used for manufacturing various gears, racks, worm gears, worms,
bearings, cams, bolts, levers, crankshafts, ratchets, and can also
be used as mechanical components such as shields |
Company Profile:
Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.
The Company Covers An Area Of More Than 400 Square Meters, And The
Three warehouses Cover A Total Area Of 110000 Square Meters, With
50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A
Professional Supplier Of modified Engineering Plastics Raw
Materials. Engaged In R&d, Production And Sales Of engineering
Plastics.
We Provide High-quality Plastic Raw Materials With Low Order
quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater

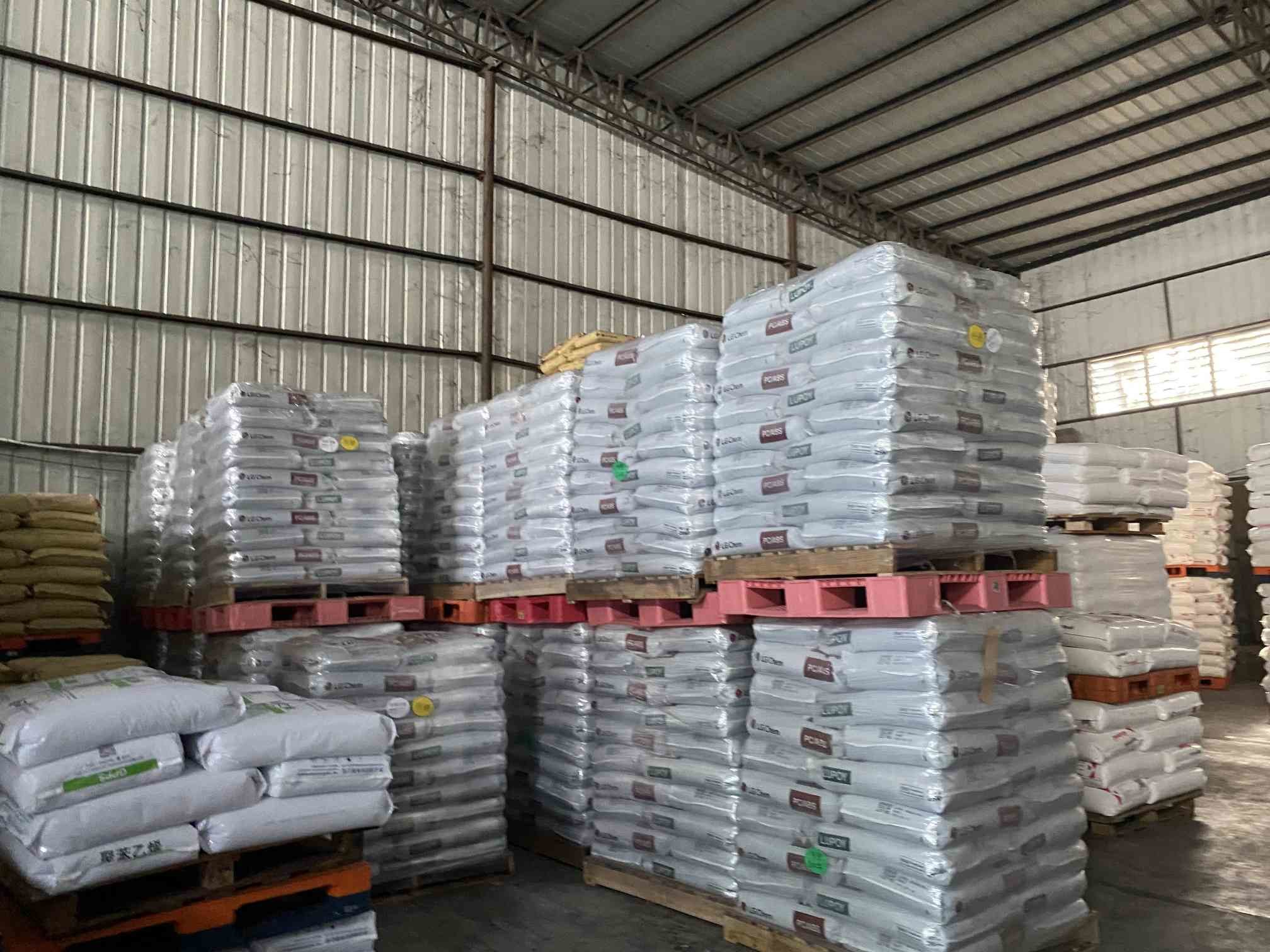

Warehouse:
How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags
for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this
will be very convenient for the customer using. It’s very easy to
handle the dosage.
What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our
quality and the products will be approved by your side.
What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before
loading.
2.We will make the shipment within 7 days after confirm the
payment.
3.We will recommend the best suitable shipping company for our
customer from different countries. Saving cost for our client
| Application | Electronics electrical appliances mobile phones cars |
| Grade | Injection Grade,Extrusion Grade |
| OEM/ODM | Accepted |
