    Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin

    Ask Lasest Price
    Brand Name : Basic Innovation Plastics USA
    Model Number : PSU G-1000
    Price : USD6-6.7KG
    Payment Terms : T/T
    Supply Ability : 500TONS
    Delivery Time : 7-15days
    Certification : MSDS
    • Product Details
    • Company Profile

    Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin


    Products Description



    Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin


    PSU G-1000 Medical grade basic innovation plastic transparent polysulfone resin flame retardant V0


    Good physical properties Mechanical properties Electrical properties High temperature resistance chemical corrosion resistance widely used in electronic and electrical coil skeleton electronic components automotive aviation sensors medical equipment daily necessities mechanical parts and so on

    product feature

    PSU
    G1000

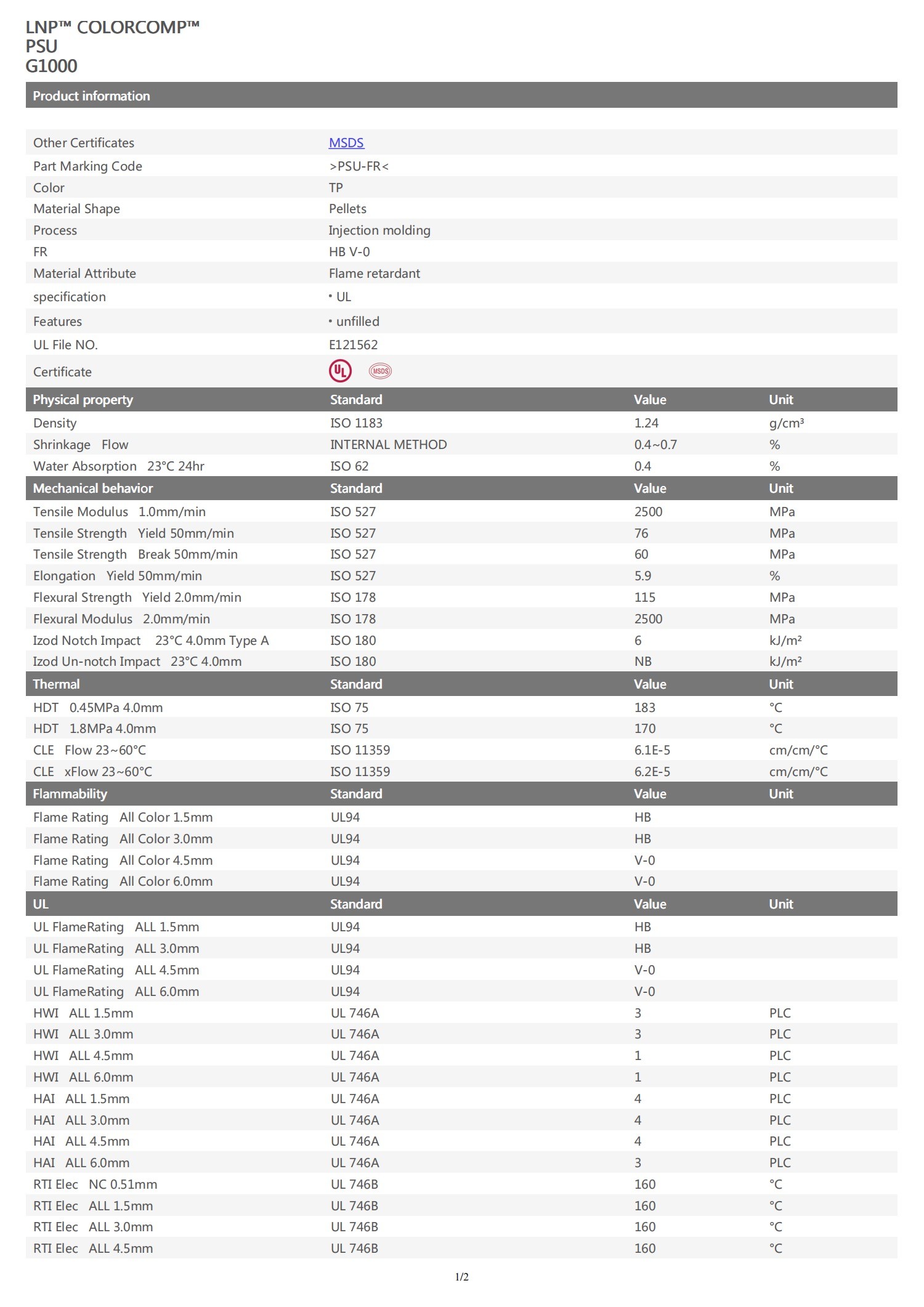

    Product information
    Other Certificates MSDS
    Part Marking Code >PSU-FR<
    Color TP
    Material Shape Pellets
    Process njection molding
    FR HBV-0
    Material Attribute Flame retardant
    specification ·UL
    Features unfilled
    UL File NO E121562
    Certificate
    Physical property Standard Value Unit
    Density SO 1183 1.24 g/cm³
    Shrinkage Flow NTERNAL METHOD 0.4-0.7 %
    Water Absorption 23C24hr ISO62 0.4 %
    Mechanical behavior Standard Value Unit
    Tensile Modulus 1.0mm/min ISO 527 2500 MPa
    Tensile Strength Yield 50mm/min ISO 527 76 MPa
    Tensile Strength Break 50mm/min SO 527 60 MPa
    Elongation Yield 50mm/min ISO 527 5.9 %
    Hlexural Strength Yield 2.0mm/min ISO 178 115 MPa
    Flexural Modulus 2.0mm/min ISO 178 2500 MPa
    zod Notch Impact 23℃4.0mm Type A ISO 180 6 kJ/m²
    Lzod Un-notch Impact 23℃4.0mm ISO 180 NB kJ/m²
    Thermal Standard Value Unit
    HDT 0.45MPa 4.0mm ISO75 183 ℃
    HDT 1.8MPa 4.0mm ISO75 170 C
    CLE Flow 23-60℃ SO 11359 6.1E-5 cm/cm/C
    CLE xFlow 23-60℃ SO 11359 6.2E-5 cm/cm/℃
    Fammability Standard Value Unit
    Flame Rating AllColor 1.5mm UL94 HB
    Flame Rating AllColor 3.0mm UL94 HB
    Fame Rating AllColor 4.5mm UL94 V-0
    Fame Rating All Color 6.0mm UL94 V-0
    UL Standard Value Unit
    UL FlameRating ALL 1.5mm UL94 HB
    UL HameRating ALL 3.0mm UL94 HB
    UL FlameRating ALL4,5mm UL94 V-0
    UL FlameRating ALL 6.0mm UL94 V-0
    HW ALL1.5mm UL746A 3 PLC
    HWI ALL 3.0mm UL746A 3 PLC
    HW ALL4.5mm UL746A 1 PLC
    HWI ALL 6.0mm UL746A 1 PLC
    HAI ALL1.5mm UL746A 4 PLC
    HAI ALL 3.0mm UL746A 4 PLC
    HAI ALL4.5mm UL746A 4 PLC
    HAI ALL 6.0mm UL746A 3 PLC
    RTI Elec NC0.51mm UL746B 160 ℃
    RTI Elec ALL 1.5mm UL746B 160 C
    RTI Elec ALL 3.0mm UL746B 160 ℃
    RTI Elec ALL 4.5mm UL746B 160 ℃

    Application


    Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone ResinMedical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin

    Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin

    Optical lighting


    It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

    Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone ResinElectronic appliances

    It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

    Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone ResinMechanical equipment

    It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields


    Physical Property Parameter​

    Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin

    Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin

    Medical Grade PSU Material Basic Innovation Plastic Transparent Polysulfone Resin
