Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material

Ask Lasest Price
Brand Name :	Basic innovative plastic
Model Number :	PA12 SL-4530
Certification :	Ocean freight appraisal report
Price :	USD5-5.4KG
Payment Terms :	T/T
Supply Ability :	500TONS
Delivery Time :	7-15days
MOQ :	1 Ton

Add to Cart

Product Details
Company Profile

Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material

Products Description

Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material

PA12 Basic innovative plastic (United States) SL-4530 injection grade lubricating wear-resistant electrical appliances plastic raw materials

With its excellent mechanical properties, chemical stability and processing convenience, PA12 SL-4530 has a wide range of application prospects in automotive parts, electronic appliances, medical equipment and other fields.

product feature

PA12
SP003(SL-4530)

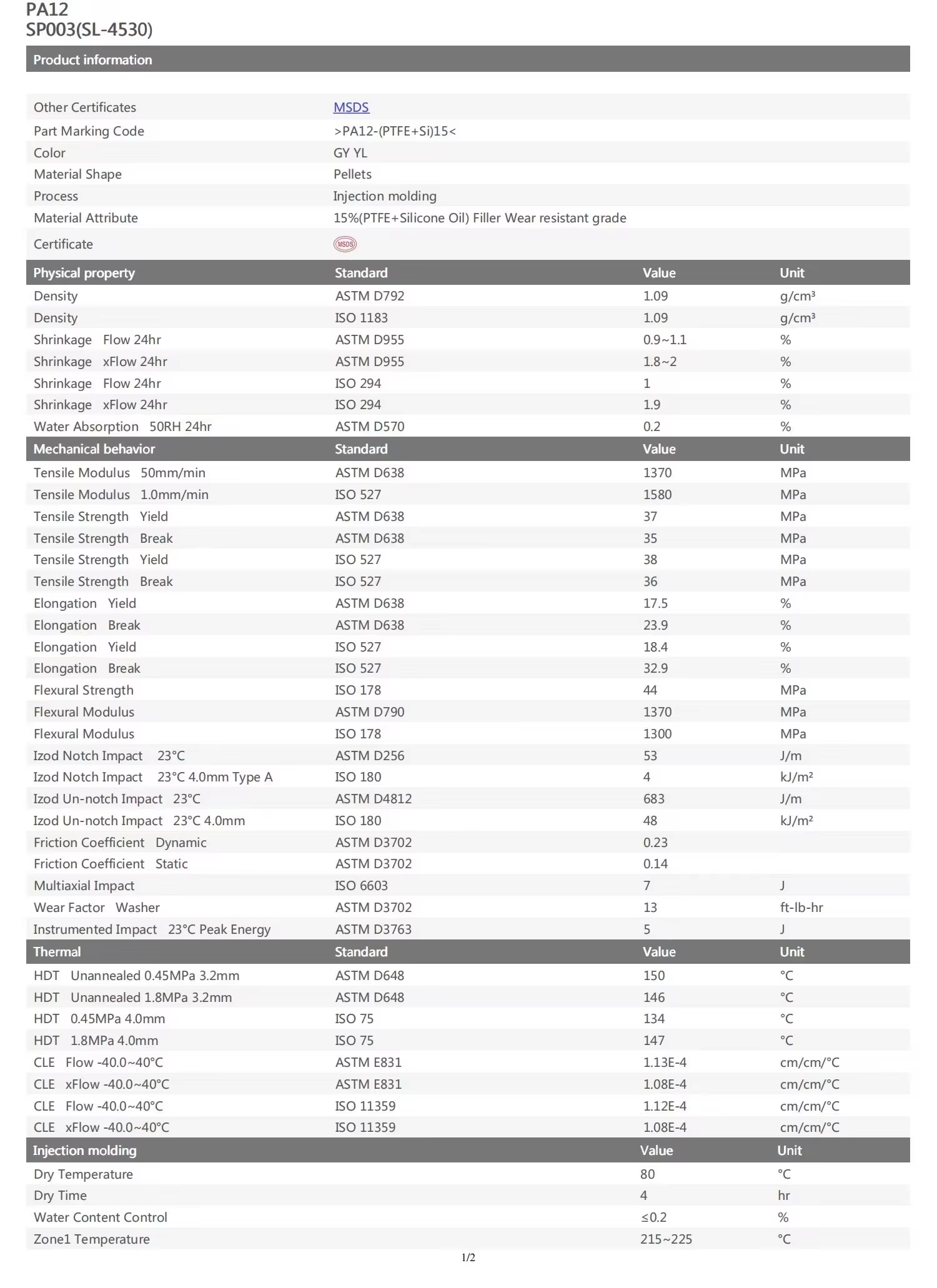

Product information
Other Certificates	MSDS
Part Marking Code	>PA12-(PTFE+Si)15<
Color	GY YL
Material Shape	Pellets
Process	Injection molding
Material Attribute	15%(PTFE+Silicone Oil)Filler Wear resistant grade
Certificate	MSDS
Physical property	Standard	Value	Unit
Density	ASTM D792	1.09	g/cm³
Density	ISO 1183	1.09	g/cm
Shrinkage Flow 24hr	ASTM D955	0.9~1.1	%
Shrinkage xFlow 24hr	ASTM D955	1.8~2	%
Shrinkage Flow 24hr	ISO 294	1	%
Shrinkage xFlow 24hr	ISO 294	1.9	%
Water Absorption 50RH 24hr	ASTM D570	0.2	%
Mechanical behavior	Standard	Value	Unit
Tensile Modulus 50mm/min	ASTM D638	1370	MPa
Tensile Modulus 1.0mm/min	ISO 527	1580	MPa
Tensile Strength Yield	ASTM D638	37	MPa
Tensile Strength Break	ASTM D638	35	MPa
Tensile Strength Yield	ISO 527	38	MPa
Tensile Strength Break	ISO 527	36	MPa
Elongation Yield	ASTM D638	17.5	%
Elongation Break	ASTM D638	23.9	%
Elongation Yield	ISO 527	18.4	%
Elongation Break	ISO 527	32.9	%
Flexural Strength	ISO 178	44	MPa
Flexural Modulus	ASTM D790	1370	MPa
Flexural Modulus	ISO 178	1300	MPa
Izod Notch Impact 23℃	ASTM D256	53	J/m
Izod Notch Impact 23℃4.0mm Type A	ISO 180	4	kJ/m²
Izod Un-notch Impact 23℃	ASTM D4812	683	J/m
Izod Un-notch Impact 23℃4.0mm	ISO 180	48	kJ/m²
Friction Coefficient Dynamic	ASTM D3702	0.23
Friction Coefficient Static	ASTM D3702	0.14
Multiaxial Impact	ISO 6603	7	J
Wear Factor Washer	ASTM D3702	13	ft-Ib-hr
Instrumented Impact 23℃ Peak Energy	ASTM D3763	5	J
Thermal	Standard	Value	Unit
HDT Unannealed 0.45MPa 3.2mm	ASTM D648	150	℃
HDT Unannealed 1.8MPa 3.2mm	ASTM D648	146	℃
HDT 0.45MPa 4.0mm	ISO 75	134	℃
HDT 1.8MPa 4.0mm	ISO 75	147	℃
CLE Flow-40.0~40℃	ASTM E831	1.13E-4	cm/cm/℃
CLE xFlow-40.0~40℃	ASTM E831	1.08E-4	cm/cm/℃
CLE Flow-40.0~40℃	ISO 11359	1.12E-4	cm/cm/℃
CLE xFlow-40.0~40℃	ISO 11359	1.08E-4	cm/cm/℃
Injection molding		Value	Unit
Dry Temperature		80	℃
Dry Time		4	hr
Water Content Control		≤0.2	%
Zonel Temperature	1/2	215~225	℃

Application

Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

Physical Property Parameter

Company Profile:

Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.

Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.

We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.

our Product Range Includes Engineering Materials And General Mater

Warehouse:

FAQ

How about our package?

1.All the packing can be customized.

2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.

3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to

handle the dosage.

What are our business principles?

1.For the trial order, 1tons will be acceptable.

2.We will do our best for the customer as long as you choosing us.

3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.

What are the advantages of our shipping and delivery?

1.We make sure all the products will be inspected strictly before loading.

2.We will make the shipment within 7 days after confirm the payment.

3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client

Application	Electronics electrical appliances mobile phones cars
Grade	Injection Grade,Extrusion Grade
OEM/ODM	Accepted
