PA12 German EMS LC-15H Anti-static containing 15% carbon fiber UV resistant thermal stability

Additives Antistatic Agent Heat Stabilizer

Certificate

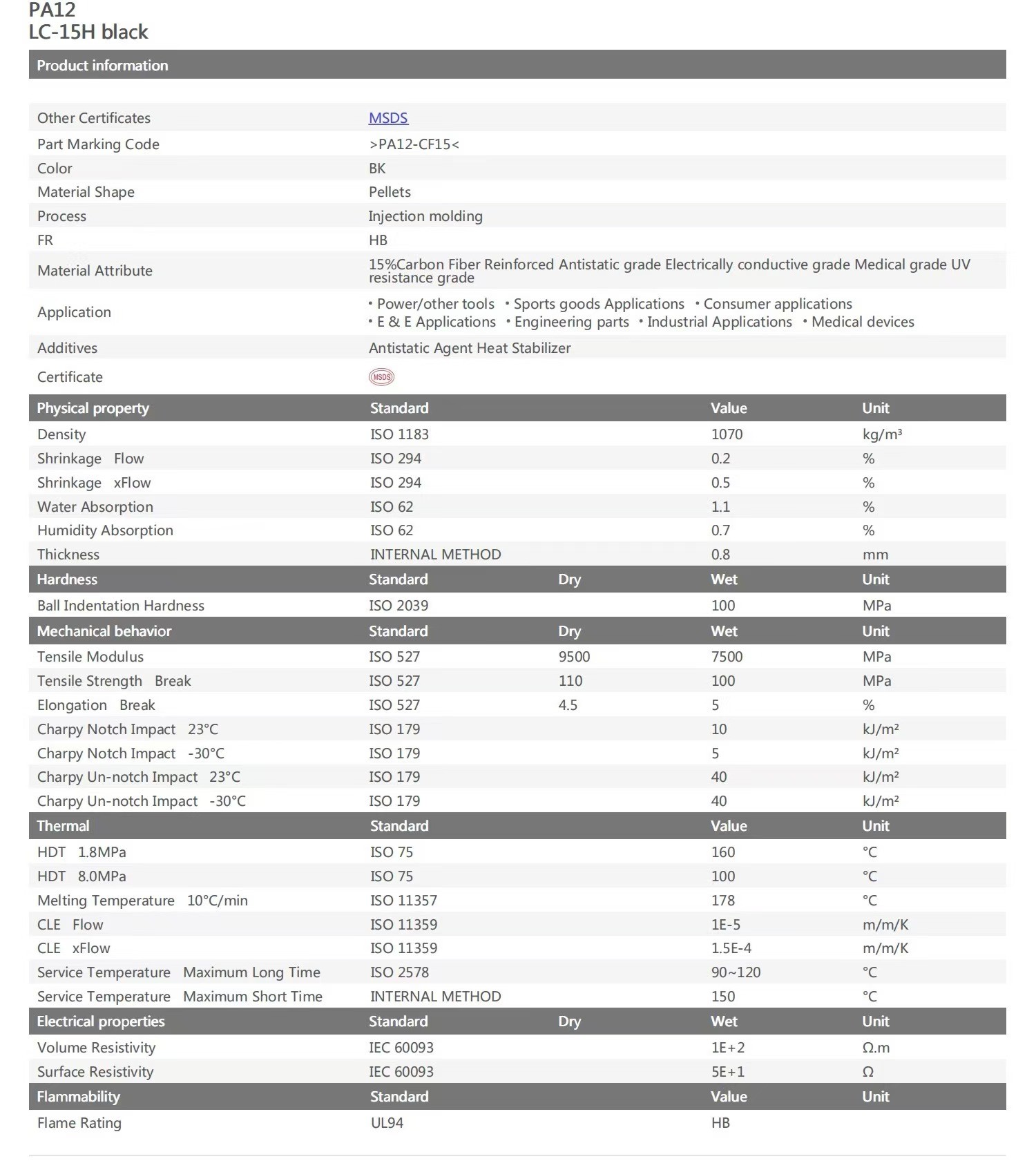

Physical property	Standard	Value	Unit
Density	SO 1183	1070	kg/m³
Shrinkage Flow	SO 294	0.2	%
Shrinkage xFlow	SO 294	0.5	%
Water Absorption	SO 62	11	%
Humidity Absorption	SO62	0.7	%
Thidkness	NTERNAL METHOD	0.8	mm
Hardness	Standard Dry	Wet	Unit
Ball Indentation Hardness	SO 2039	100	MPa
Mechanical behavior	Standard Dry	Wet	Unit
Tensile Modulus	SO 527 9500	7500	MPa
Tensile Strength Break	SO 527 110	100	MPa
Elongation Break	SO 527 4.5	5	%
Charpy Notch Impact 23°℃	ISO 179	10	kJ/m²
Charpy Notch Impact -30℃	ISO 179	5	kJ/m²
Charpy Un-notch Impact 23℃	ISO 179	40	kJ/m²
Charpy Un-notch Impact -30℃	SO 179	40	kJ/m²
Thermal	Standard	Value	Unit
HDT 1.8MPa	SO 75	160	℃
HDT 8.0MPa	SO75	100	℃
Melting Temperature 10℃/min	SO 11357	178	℃
CLE Flow	ISO 11359	1E-5	m/m/K
CLE xFlow	ISO 11359	15E-4	m/m/K
Service Temperature Maximum Long Time	SO 2578	90-120	℃
Service Temperature Maximum Short Time	NTERNAL METHOD	150	℃
Electrical properties	Standard Dry	Wet	Unit
Volume Resistivity	IEC 60093	1E+2	Qm
Surface Resistivity	IEC60093	5E+1	Q
Flammability	Standard	Value	Unit
Fame Rating	UL94	HB

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields
