PPS Japan up to RS1340 injection grade flame retardant grade high temperature resistance high rigidity high strength polyphenylene sulfide

Products Description

PPS Japan up to RS1340 injection grade flame retardant grade high temperature resistance high rigidity high strength polyphenylene sulfide

Heat resistance: PPS RS1340 has excellent heat resistance, continuous use temperature up to 240 degrees.
Mechanical strength: It has high tensile strength (143MPa) and high bending strength (193MPa), making it ideal for manufacturing parts that need to withstand greater stress.
Electrical properties: PPS RS1340 has excellent electrical properties, maintaining stable dielectric properties and insulation resistance even at high temperatures.
Chemical resistance: It has good resistance to most chemicals and will not be easily corroded or dissolved.
Dimensional stability: PPS RS1340 has a low molding shrinkage rate and has excellent dimensional stability, ensuring that the size of the product changes little under different environmental conditions.
Flame retardant: UL94 V-0 flame retardant performance, suitable for applications with high fire safety requirements.
Processing performance: good fluidity, easy to form, forming almost no shrinkage hole bump, shorten the production cycle, improve production efficiency.
Environmental protection: non-toxic and harmless, in line with environmental protection directives such as RoHS, suitable for the market with strict environmental requirements.
PPS RS1340 with its excellent comprehensive performance, in electronic appliances, automotive industry, precision instruments and other fields to show a wide range of application potential and market value.

product feature

PPS
RS-1340

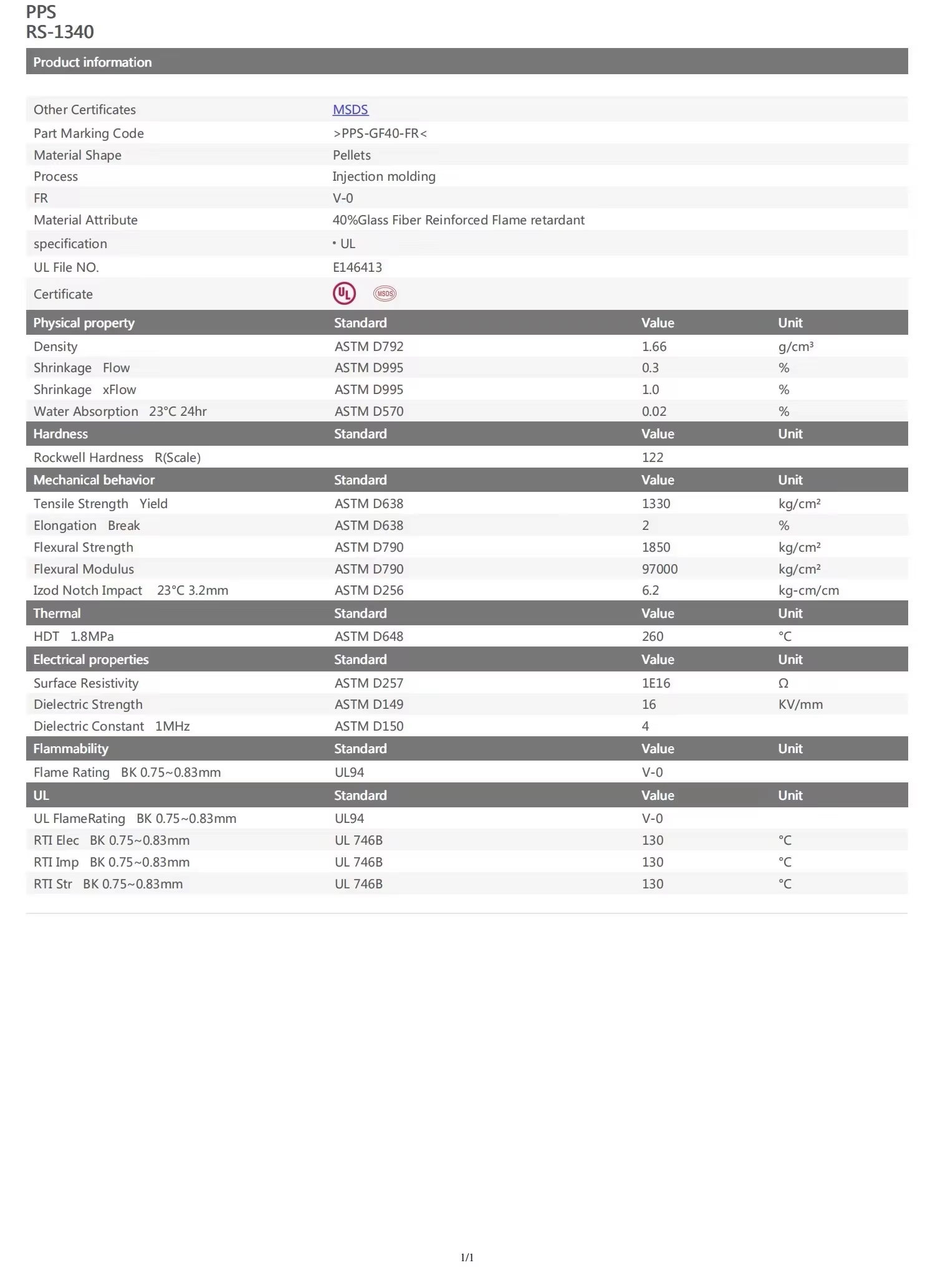

Product information
Other Certificates	MSDS
Part Marking Code	>PPS-GF40-FR<
Material Shape	Pellets
Process	Injection molding
FR	V-0
Material Attribute	40%Glass Fiber Reinforced Flame retardant
specification	·UL
UL File NO	E146413
Certificate	U MSDS
Physical property	Standard	Value	Unit
Density	ASTM D792	1.66	g/cm³
Shrinkage Flow	ASTM D995	0.3	%
Shrinkage xFlow	ASTM D995	1.0	%
Water Absorption 23℃ 24hr	ASTM D570	0.02	%
Hardness	Standard	Value	Unit
Rockwell Hardness R(Scale)		122
Mechanical behavior	Standard	Value	Unit
Tensile Strength Yield	ASTM D638	1330	kg/cm²
Elongation Break	ASTM D638	2	%
Flexural Strength	ASTM D790	1850	kg/cm²
Flexural Modulus	ASTM D790	97000	kg/cm²
Izod Notch Impact 23℃ 3.2mm	ASTM D256	6.2	kg-cm/cm
Thermal	Standard	Value	Unit
HDT 1.8MPa	ASTM D648	260	℃
Electrical properties	Standard	Value	Unit
Surface Resistivity	ASTM D257	1E16	Ω
Dielectric Strength	ASTM D149	16	KV/mm
Dielectric Constant 1MHz	ASTM D150	4
Flammability	Standard	Value	Unit
Flame Rating BK 0.75~0.83mm	UL94	V-0
UL	Standard	Value	Unit
UL FlameRating BK 0.75~0.83mm	UL94	V-0
RTI Elec BK 0.75~0.83mm	UL 746B	130	℃
RTI Imp BK 0.75~0.83mm	UL746B	130	℃
RTI Str BK 0.75~0.83mm	UL746B	130	℃

Application

PPS Japan up to RS1340 injection grade flame retardant grade high temperature resistance high rigidity high strength polyphenylene sulfide

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

Physical Property Parameter
