PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure

Dongguan Pengchen New Materials Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure from wholesalers

    Buy cheap PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure from wholesalers
    • Buy cheap PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure from wholesalers
    • Buy cheap PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure from wholesalers
    • Buy cheap PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure from wholesalers
    • Buy cheap PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure from wholesalers
    • Buy cheap PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure from wholesalers
    • Buy cheap PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure from wholesalers

    PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure

    Ask Lasest Price
    Brand Name : Printing ink
    Model Number : PPS FZ-1140-D5
    Certification : MSDS FDA
    Price : USD8-9KG
    Payment Terms : T/T
    Supply Ability : 500T
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure

    Products Description



    PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure


    PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure

    Wear and low friction: The material is a fiberglass and teflon-filled PPS composite that provides low friction and wear resistance.
    Heat resistance: PPS resin has a high melting point of about 280℃ and excellent drug resistance, without adding flame retardants to self-extinguishing characteristics.
    Flame retardant: The limiting oxygen index of PPS can be as high as 44, which has excellent fire resistance. Basically, with the exception of a few grades such as the Super Tough series, the UL94 flammability of various grades of PPS is a V-0 grade, which is already a grade in UL94 flammability.
    Dimensional stability: Excellent dimensional stability in a wide range of environmental conditions.
    Drug resistance: second only to fluorine resin drug resistance.
    Electrical performance: high temperature, wet, high frequency under the excellent electrical performance.
    Widely used: suitable for automotive industry, electronic and electrical industry, machinery industry and other fields

    product feature

    PPS
    FZ-1140-D5

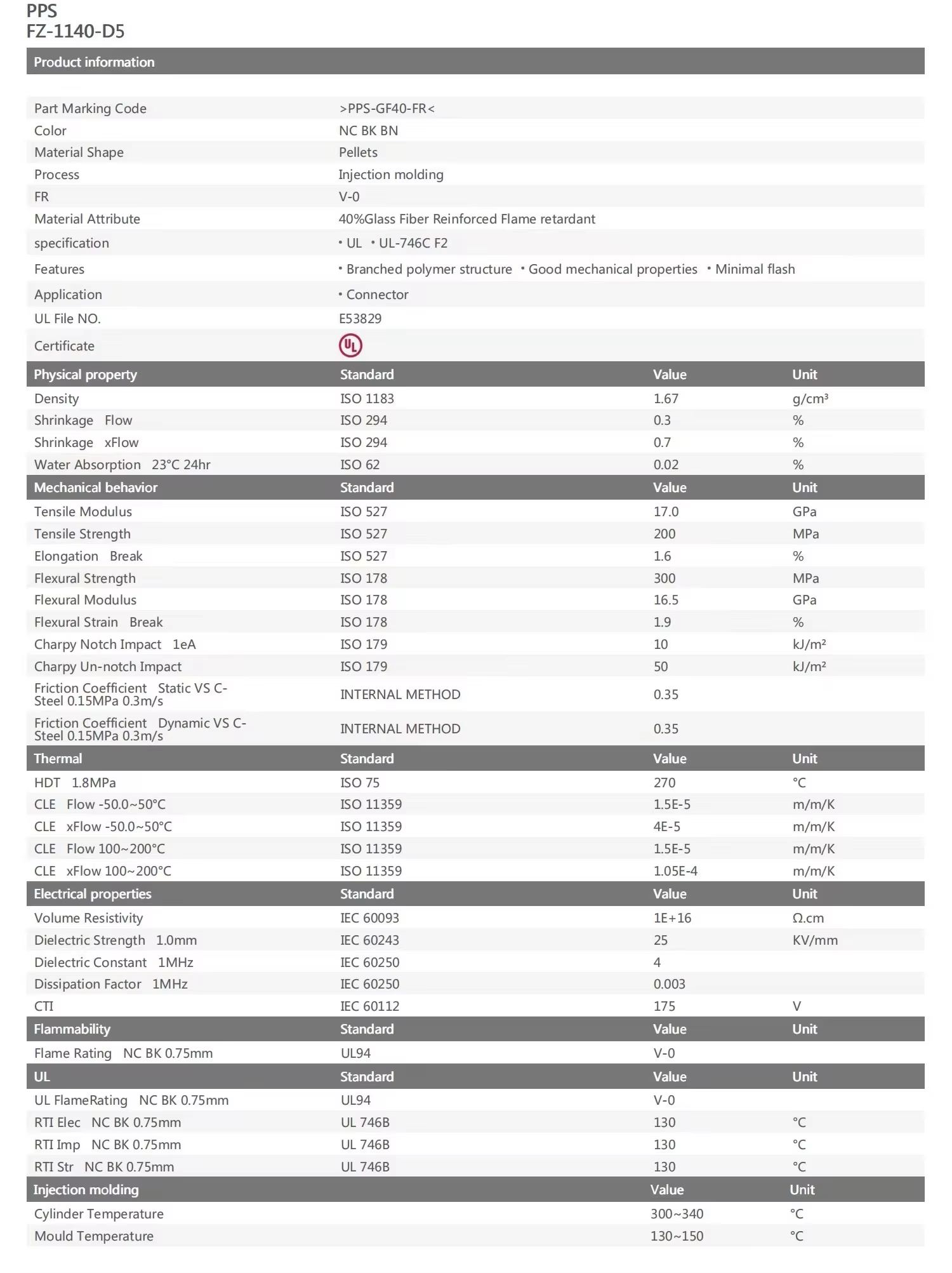

    Product information
    Part Marking Code>PPS-GF40-FR<
    ColorNC BK BN
    Material ShapePellets
    ProcessInjection molding
    FRV-0
    Material Attribute40%Glass Fiber Reinforced Flame retardant
    specification·UL ·UL-746C F2
    Features·Branched polymer structure ·Good mechanical properties ·Minimal flash
    Application·Connector
    UL File NO.PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure E53829
    CertificatePPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure
    Physical propertyStandardValueUnit
    DensityISO 11831.67g/cm³
    Shrinkage FlowISO 2940.3%
    Shrinkage xFlowISO 2940.7%
    Water Absorption 23℃24hrISO 620.02%
    Mechanical behaviorStandardValueUnit
    Tensile ModulusISO 52717.0GPa
    Tensile StrengthISO 527200MPa
    Elongation BreakISO 5271.6%
    Flexural StrengthISO 178300MPa
    Flexural ModulusISO 17816.5GPa
    Flexural Strain BreakISO 1781.9%
    Charpy Notch Impact leAISO 17910kJ/m²
    Charpy Un-notch ImpactISO 17950kJ/m²
    Friction Coefficient Static VS C-
    Steel 0.15MPa 0.3m/s
    INTERNAL METHOD0.35
    Friction Coefficient Dynamic VS C-
    Steel 0.15MPa 0.3m/s
    INTERNAL METHOD0.35
    ThermalStandardValueUnit
    HDT 1.8MPaISO 75270
    CLE Flow-50.0~50℃ISO 113591.5E-5m/m/K
    CLE xFlow-50.0~50℃ISO 113594E-5m/m/K
    CLE Flow 100~200℃ISO113591.5E-5m/m/K
    CLE xFlow 100~200℃ISO 113591.05E-4m/m/K
    Electrical propertiesStandardValueUnit
    Volume ResistivityIEC 600931E+16Ω.cm
    Dielectric Strength 1.0mmIEC 6024325KV/mm
    Dielectric Constant 1MHzIEC 602504
    Dissipation Factor 1MHzIEC 602500.003
    CTIIEC 60112175V
    FlammabilityStandardValueUnit
    Flame Rating NC BK0.75mmUL94V-0
    ULStandardValueUnit
    UL FlameRating NC BK 0.75mmUL94V-0
    RTI Elec NC BK 0.75mmUL746B130
    RTI Imp NC BK 0.75mmUL 746B130
    RTI Str NC BK0.75mmUL 746B130
    Injection moldingValueUnit
    Cylinder Temperature300~340
    Mould Temperature130~150

    Application


    PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structurePPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure

    PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure

    Optical lighting


    It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

    PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structureElectronic appliances

    It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

    PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structureMechanical equipment

    It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields


    Physical Property Parameter​


    Company Profile:


    Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

    The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
    Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
    We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
    our Product Range Includes Engineering Materials And General Mater
    PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structurePPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure

    Warehouse:


    PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structurePPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure
    PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structurePPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure
    FAQ
    How about our package?
    1.All the packing can be customized.
    2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
    3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
    handle the dosage.
    What are our business principles?
    1.For the trial order, 1tons will be acceptable.
    2.We will do our best for the customer as long as you choosing us.
    3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.
    What are the advantages of our shipping and delivery?
    1.We make sure all the products will be inspected strictly before loading.
    2.We will make the shipment within 7 days after confirm the payment.
    3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client

    ApplicationElectronics electrical appliances mobile phones cars
    GradeInjection Grade,Extrusion Grade
    OEM/ODMAccepted

    Quality PPS Japan ink FZ-1140-D5 BK high temperature flame retardant grade glass fiber reinforced 40% polymer structure for sale
