PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide

Product Categories

Dongguan Pengchen New Materials Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide

Ask Lasest Price
Brand Name :	Solvay
Model Number :	PA A 1133 HS BK543
Certification :	MSDS
Price :	USD6-6.3KG
Payment Terms :	T/T
Supply Ability :	500T
Delivery Time :	5-14days

Add to Cart

Product Details
Company Profile

PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide

Products Description

PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide

High strength: The material has excellent strength and rigidity to meet the needs of high-load applications such as automotive components.
Low water absorption: Its low water absorption characteristics allow it to maintain a stable size and performance in wet environments.
Creep resistance: Even under high temperature and high load conditions, it can effectively resist deformation and ensure the long-term stability of the product.
Chemical resistance: Good resistance to a variety of chemicals, suitable for harsh chemical environments.
Flame retardant: It has certain flame retardant performance and meets strict fire safety standards.
Processing performance: Good injection molding processing performance, easy to mass production and complex shape manufacturing.
Heat resistance: Maintains excellent mechanical properties over a wide temperature range.
Surface gloss: Excellent surface gloss, without additional spraying can obtain satisfactory appearance

product feature

A-1133 HS BK
543

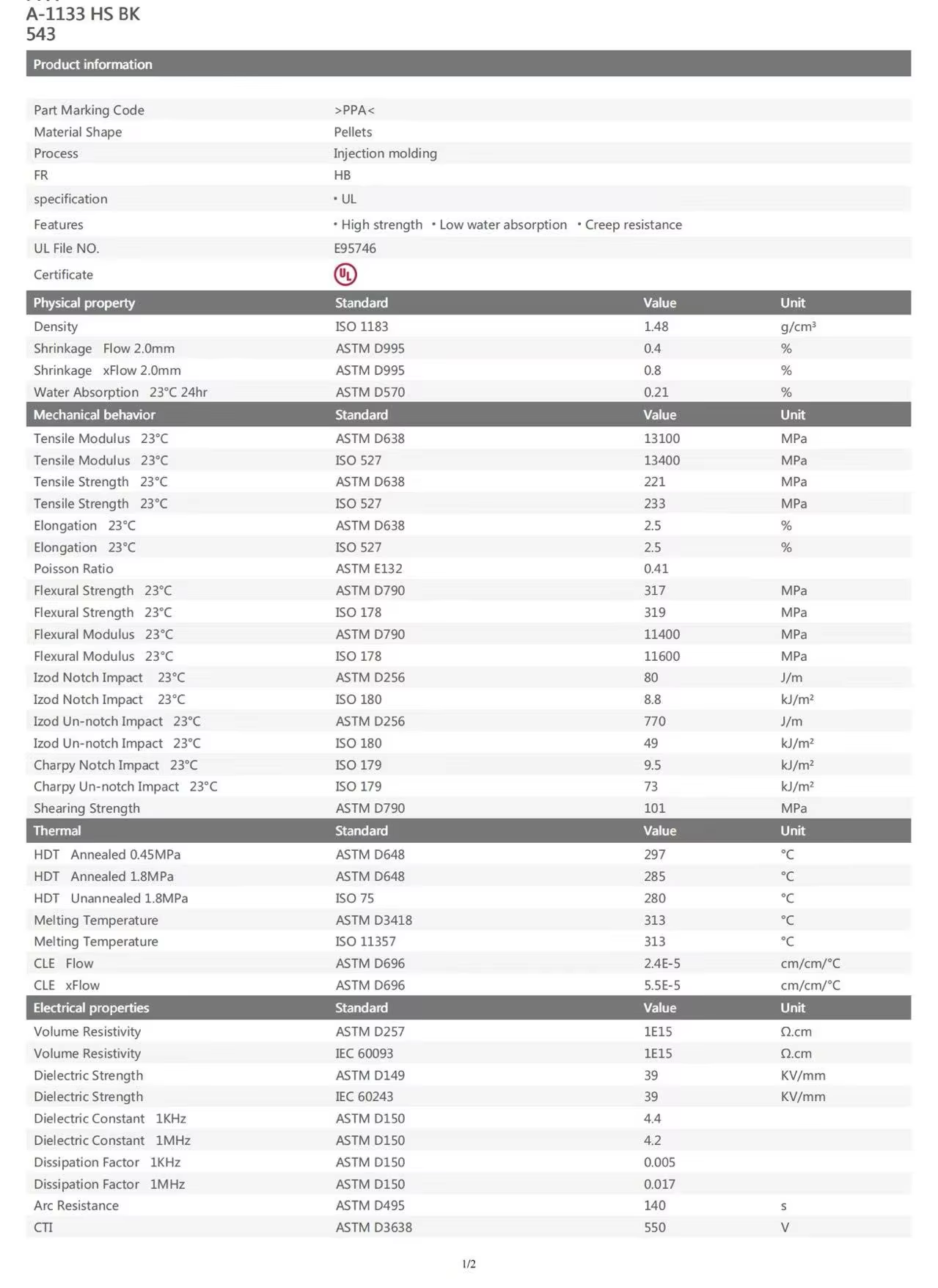

Product information
Part Marking Code	>PPA<
Material Shape	Pellets
Process	Injection molding
FR	HB
specification	·UL
Features	·High strength ·Low water absorption ·Creep resistance
UL File NO.	E95746
Certificate
Physical property	Standard	Value	Unit
Density	ISO 1183	1.48	g/cm³
Shrinkage Flow 2.0mm	ASTM D995	0.4	%
Shrinkage xFlow 2.0mm	ASTM D995	0.8	%
Water Absorption 23℃24hr	ASTM D570	0.21	%
Mechanical behavior	Standard	Value	Unit
Tensile Modulus 23℃	ASTM D638	13100	MPa
Tensile Modulus 23℃	ISO 527	13400	MPa
Tensile Strength 23℃	ASTM D638	221	MPa
Tensile Strength 23℃	ISO 527	233	MPa
Elongation 23℃	ASTM D638	2.5	%
Elongation 23℃	ISO527	2.5	%
Poisson Ratio	ASTM E132	0.41
Flexural Strength 23℃	ASTM D790	317	MPa
Flexural Strength 23℃	ISO 178	319	MPa
Flexural Modulus 23℃	ASTM D790	11400	MPa
Flexural Modulus 23℃	ISO 178	11600	MPa
Izod Notch Impact 23℃	ASTM D256	80	J/m
Izod Notch Impact 23℃	ISO 180	8.8	kJ/m²
Izod Un-notch Impact 23℃	ASTM D256	770	J/m
Izod Un-notch Impact 23℃	ISO 180	49	kJ/m²
Charpy Notch Impact 23℃	ISO 179	9.5	kJ/m²
Charpy Un-notch Impact 23℃	ISO 179	73	kJ/m²
Shearing Strength	ASTM D790	101	MPa
Thermal	Standard	Value	Unit
HDT Annealed 0.45MPa	ASTM D648	297	℃
HDT Annealed 1.8MPa	ASTM D648	285	℃
HDT Unannealed 1.8MPa	ISO 75	280	℃
Melting Temperature	ASTM D3418	313	℃
Melting Temperature	ISO 11357	313	℃
CLE Flow	ASTM D696	2.4E-5	cm/cm/℃
CLE xFlow	ASTM D696	5.5E-5	cm/cm/℃
Electrical properties	Standard	Value	Unit
Volume Resistivity	ASTM D257	1E15	Ω.cm
Volume Resistivity	IEC60093	1E15	Ω.cm
Dielectric Strength	ASTM D149	39	KV/mm
Dielectric Strength	IEC 60243	39	KV/mm
Dielectric Constant 1KHz	ASTM D150	4.4
Dielectric Constant 1MHz	ASTM D150	4.2
Dissipation Factor 1KHz	ASTM D150	0.005
Dissipation Factor 1MHz	ASTM D150	0.017
Arc Resistance	ASTM D495	140	S
CTI	ASTM D3638	550	V

Application

PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields
