    OFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive Field

    Ask Lasest Price
    Brand Name : Basic innovative materials
    Model Number : PPS OFL-4036
    Certification : MSDS
    Price : USD3.2-4KG
    Payment Terms : T/T
    Supply Ability : 500T
    Delivery Time : 5-14days
    • Product Details
    • Company Profile

    OFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive Field

    Products Description






    OFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive Field






    PPS American basic innovation OFL-4036 glass fiber reinforced injection molding grade high heat and high strength warping resistance polyphenylene sulfide automotive field


    PPS (OFL-4036) is the ideal choice for many industries due to its excellent heat, chemical, electrical, mechanical and flame retardant properties, as well as excellent dimensional stability and fluidity. Including electronic and electrical, mechanical instrumentation, automobile manufacturing and household appliances

    product feature

    PPS
    OFL36(OFL-4036)

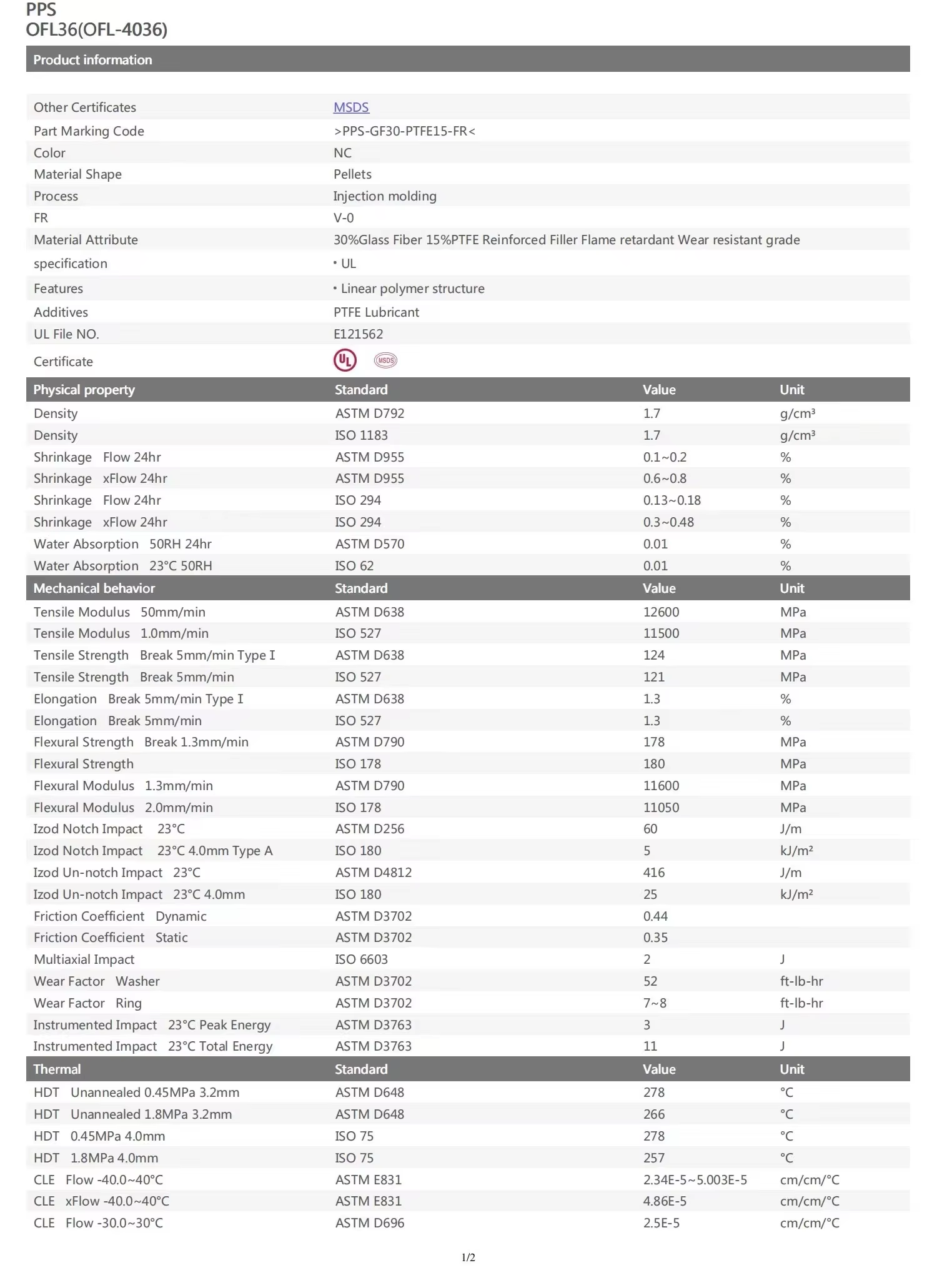

    Product information
    Other CertificatesMSDS
    Part Marking Code>PPS-GF30-PTFE15-FR<
    ColorNC
    Material ShapePellets
    ProcessInjection molding
    FRV-0
    Material Attribute30%Glass Fiber 15%PTFE Reinforced Filler Flame retardant Wear resistant grade
    specification·UL
    Features·Linear polymer structure
    AdditivesPTFE Lubricant
    UL File NO.E121562
    CertificateWMSDS
    Physical propertyStandardValueUnit
    DensityASTM D7921.7g/cm³
    DensityISO 11831.7g/cm³
    Shrinkage Flow 24hrASTM D9550.1~0.2%
    Shrinkage xFlow 24hrASTM D9550.6~0.8%
    Shrinkage Flow 24hrISO 2940.13~0.18%
    Shrinkage xFlow 24hrISO 2940.3~0.48%
    Water Absorption 50RH 24hrASTM D5700.01%
    Water Absorption 23℃50RHISO 620.01%
    Mechanical behaviorStandardValueUnit
    Tensile Modulus 50mm/minASTM D63812600MPa
    Tensile Modulus 1.0mm/minISO52711500MPa
    Tensile Strength Break 5mm/min Type IASTM D638124MPa
    Tensile Strength Break 5mm/minISO 527121MPa
    Elongation Break 5mm/min Type IASTM D6381.3%
    Elongation Break 5mm/minISO 5271.3%
    Flexural Strength Break 1.3mm/minASTM D790178MPa
    Flexural StrengthISO 178180MPa
    Flexural Modulus 1.3mm/minASTM D79011600MPa
    Flexural Modulus 2.0mm/minISO 17811050MPa
    Izod Notch Impact 23℃ASTM D25660J/m
    Izod Notch Impact 23℃4.0mm Type AISO 1805kJ/m²
    Izod Un-notch Impact 23℃ASTM D4812416J/m
    Izod Un-notch Impact 23℃4.0mmISO 18025kJ/m²
    Friction Coefficient DynamicASTM D37020.44
    Friction Coefficient StaticASTM D37020.35
    Multiaxial ImpactISO 66032J
    Wear Factor WasherASTM D370252ft-Ib-hr
    Wear Factor RingASTM D37027~8ft-Ib-hr
    Instrumented Impact 23℃ Peak EnergyASTM D37633J
    Instrumented Impact 23℃ Total EnergyASTM D376311J
    ThermalStandardValueUnit
    HDT Unannealed 0.45MPa 3.2mmASTM D648278
    HDT Unannealed 1.8MPa 3.2mmASTM D648266
    HDT 0.45MPa 4.0mmISO 75278
    HDT 1.8MPa 4.0mmISO 75257
    CLE Flow -40.0~40℃ASTM E8312.34E-5~5.003E-5cm/cm/℃
    CLE xFlow -40.0~40℃ASTM E8314.86E-5cm/cm/℃
    CLE Flow-30.0~30℃ASTM D6962.5E-5cm/cm/℃

    Application




    OFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive FieldOFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive Field

    OFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive Field

    Optical lighting

    It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

    OFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive FieldElectronic appliances


    It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

    OFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive FieldMechanical equipment


    It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields


    Physical Property Parameter​

    OFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive Field

    Company Profile:

    Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

    The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
    Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
    We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
    our Product Range Includes Engineering Materials And General Mater
    OFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive FieldOFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive Field

    Warehouse:


    OFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive FieldOFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive Field
    OFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive FieldOFL-4036 Polyphenylene Sulfide PPS Glass Fiber Reinforced Warping Resistance Automotive Field
    FAQ
    How about our package?
    1.All the packing can be customized.
    2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
    3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
    handle the dosage.
    What are our business principles?
    1.For the trial order, 1tons will be acceptable.
    2.We will do our best for the customer as long as you choosing us.
    3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.
    What are the advantages of our shipping and delivery?
    1.We make sure all the products will be inspected strictly before loading.
    2.We will make the shipment within 7 days after confirm the payment.
    3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client


    ApplicationElectronics electrical appliances mobile phones cars
    GradeInjection Grade,Extrusion Grade
    OEM/ODMAccepted
